Ecdyonurus dispar (Autumn dun):

Implied properties for this entry

Model:  hep

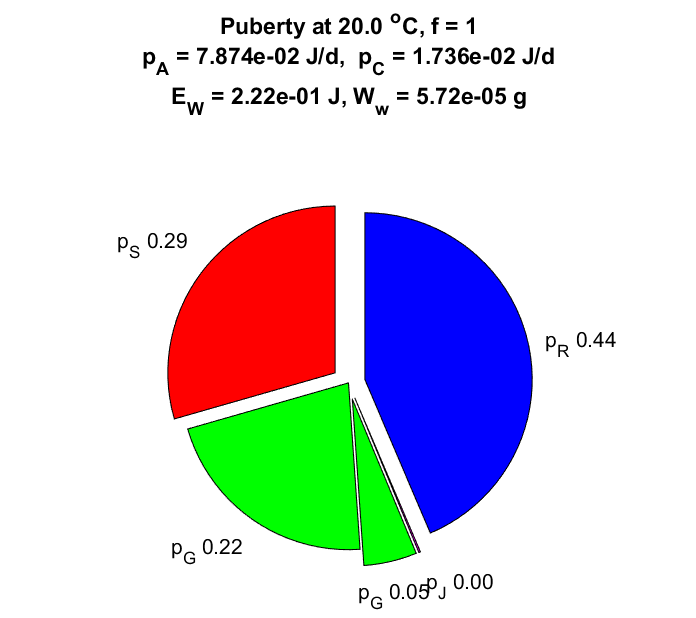

Energy investment, cumulated over the embryo period (left), and allocation during ontogeny

Exploding sectors mean dissipation; numbers denote fractions of mobilized reserve. Endpoints are somatic maintenance S, growth G, maturity maintenance J, maturity or reproduction R. Growth is splitted into overhead and flux fixed in tissue. Reproduction overhead is not idicated, since it is pays at conversion of buffer to eggs/foetuses. The change in reserve equals assimilation p_A minus mobilization p_C. Wet weight W_w and total energy E_W exclude the reproduction buffer in adults. Pies link to budget pages.

Implied properties at typical temperature (20 deg. C) and abundant food
symbol value units description
z 1.2077 -zoom factor
c_T 1 -Temperature Correction factor
s_M 2.94363 -acceleration factor at f=1
s_Hbp 0.0390425 -maturity ratio
s_HLbp 0.995832 -maturity density ratio at f=1
s_s 9.07527e-09 -supply stress
E_0 0.0141651 Jinitial reserve
Wd_0 6.15539e-07 ginitial dry weight
a_b 10.9242 dage at birth
a_p 26.1558 dage at puberty
Wd_b 5.01423e-07 gdry weight at birth
Wd_p 1.27895e-05 gdry weight at puberty
Wd_i 0.00237143 gultimate dry weight
L_b 0.00714894 cmstructural length at birth
L_p 0.0210438 cmstructural length at puberty
L_e 0.119999 cmstructural length at emergence
W_dWm 0.0139496 gwet weight at maximum growth
dWm 0.00144986 g/dmaximum growth in wet weight
N_i 2009.64 #life time reproductive output
del_Wb 0.000211443 -birth weight as fraction of maximum weight
del_Wp 0.00539314 -puberty weight as fraction of maximum weight
del_V 0.123871 -fraction of max weight that is structure
E_m 27670.2 J/cm^3[E_m], reserve capacity
t_starve 1408.27 dmaximum survival time when starved
t_E 565.8 dmaximum reserve residence time
xi_WE 22.7534 kJ/ gwhole-body energy density of dry biomass (no reprod buffer)
eb_min_G 0.00587135 -scaled reserve density whereby growth ceases at birth
eb_min_R 0.00270431 -scaled reserve density whereby maturation ceases at birth
J_Ob 2.11012e-09 mol/dO2 flux at birth
J_Op 5.3799e-08 mol/dO2 flux at puberty
J_Oi 0.00259792 mol/dultimate O2 flux
